How to Install Van Sound Deadening Properly

A bare panel van is effectively a metal drum. Tyre roar, rain, engine vibration and traffic noise all excite the large steel panels around the cab and load area. If you install van sound deadening before covering those panels with insulation and lining, the finished camper will feel noticeably more solid and less tiring to drive.

The job is not about covering every square inch with the heaviest material available. Good results come from using the right material in the right places, preparing the metal properly and following the build sequence. Sound deadening controls panel resonance. Thermal insulation manages heat loss and condensation. Acoustic foam can reduce reflected noise within a cavity. They work together, but they are not interchangeable.

Where sound deadening makes the biggest difference

Prioritise the largest, flattest and most easily excited metal panels. On most vans, this means the cab floor, front doors, rear wheel arches, side panels, sliding door, rear doors and roof. Tap a bare panel with your knuckle: a hollow, ringing sound usually identifies an area that will benefit from damping.

Wheel arches and the cab floor deserve particular attention because they transmit road and tyre noise directly into the vehicle. Door skins can also make a worthwhile difference, especially if the van will be used for long motorway journeys. Roof treatment reduces the drumming effect of rain, although it is normally a lower priority than the floor and arches if material is limited.

Do not ignore awkward sections entirely, but do not waste time forcing material into narrow structural ribs or heavily curved areas where it cannot bond properly. A well-fitted sheet on the centre of a large panel is more effective than small, poorly adhered scraps around its edges.

Choose the correct materials before you start

For panel damping, use a purpose-made butyl-based sound-deadening sheet with an aluminium facing. This material adds constrained mass to the panel, reducing its ability to vibrate and ring. It is not the same as bitumen flashing tape, which can soften in heat, smell and become difficult to remove.

A campervan build commonly uses three separate layers in this area. First comes the butyl sound-deadening sheet on clean metal. Next is suitable thermal insulation, chosen for the panel, moisture conditions and available cavity depth. Finally, where appropriate, a closed-cell acoustic or thermal foam layer can help limit reflected sound and prevent trim from rattling. The exact combination depends on the van, climate, intended use and lining system.

Avoid fitting insulation first and assuming it will cure panel boom. Fibrous insulation may help absorb airborne sound, but it will not stop the steel skin itself resonating. Equally, sound-deadening sheets are not a substitute for a properly planned insulation system.

Tools and preparation for installing van sound deadening

You need a tape measure, marker pen, sharp utility knife or heavy-duty scissors, degreasing cleaner, clean lint-free cloths, gloves and a firm roller. A small hand roller with a shaped edge is useful for working around pressings and contours. Keep spare blades to hand. A blunt blade tears foil rather than producing a clean cut.

Preparation determines whether the material remains in place for years or starts lifting behind your lining. Remove loose dirt, adhesive residue, grease and wax from every panel. Vacuum dust from seams and recesses, then wipe the metal with a suitable panel wipe or degreaser. Let it dry completely.

Inspect the van before covering anything. Deal with rust, leaks, damaged seam sealer and loose wiring first. Sound deadening should never hide a corrosion problem or block drain holes. If you are fitting windows, roof vents, cable routes or additional brackets later, mark their locations now so you do not apply material where it will need to be removed.

Work in reasonable temperatures. Butyl sheets become more pliable when warm and are harder to shape in a cold workshop. There is no need to overheat the material. Gentle warmth is enough to improve handling; excessive heat can make it too soft and messy.

Fit the sheets in manageable sections

Start with a panel that is easy to reach, such as a side wall or rear door. Measure the usable flat areas rather than trying to create one large template for the whole panel. Smaller pieces are easier to position, less likely to trap air and simpler to replace if a cut is wrong.

Cut the sheet slightly short of seams, factory joins and access points. Leave drain paths, wiring plugs, threaded inserts and service holes clear. On doors, take particular care not to interfere with latch mechanisms, window regulators, wiring looms or water drainage routes.

Peel back only part of the release liner, locate the first edge, then gradually pull the liner away as you press the sheet into position. Do not lay a full sheet adhesive-side down and hope to reposition it. Butyl grips quickly, and repeated lifting can contaminate the adhesive or distort the foil face.

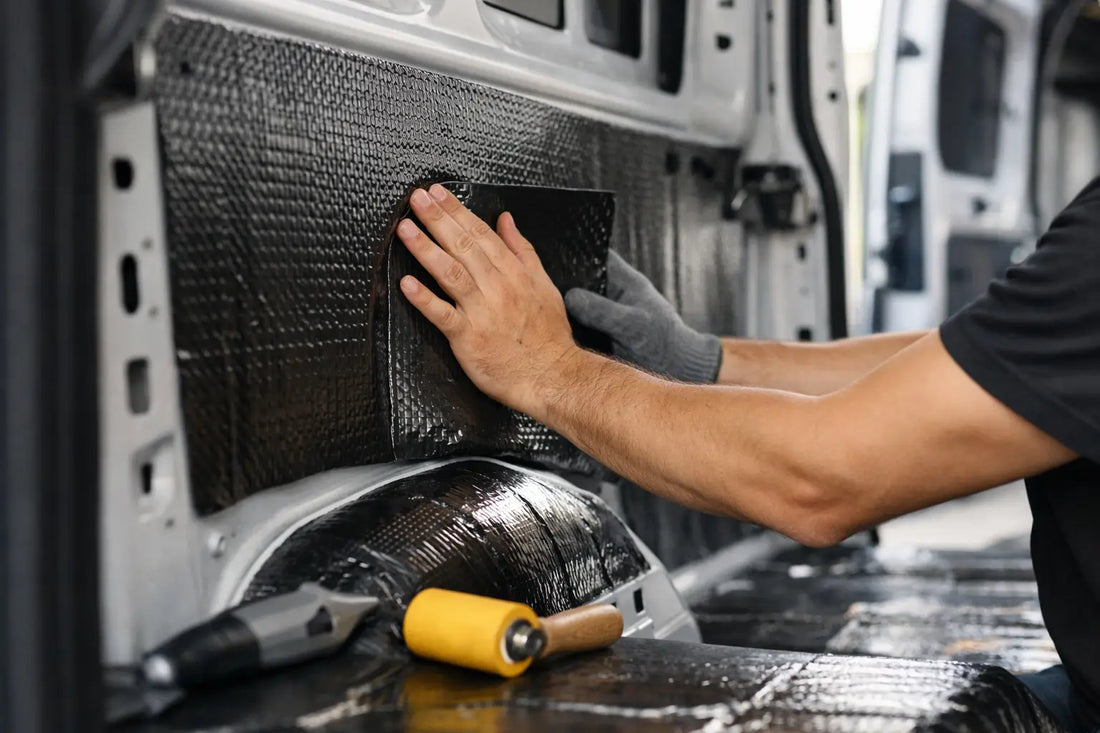

Roll the material firmly from the centre outwards. The aim is full contact with the steel, including around shallow pressings and contours. Any raised edges or air pockets should be worked out immediately. A roller is not optional kit here: hand pressure alone rarely gives consistent contact across a textured van panel.

If a panel has deep corrugations, apply several narrower strips rather than bridging one wide sheet across the recesses. Bridged material can trap air and may eventually lift. It also provides less effective damping because it is not bonded to the metal below.

How much coverage is enough?

Full coverage is not always necessary. On many large body panels, roughly 25 to 50 per cent coverage of well-placed damping sheet can achieve most of the reduction in resonance. Focus on the broad centres of panels and test as you go. The sharp ring should become a duller, shorter thud.

Higher coverage may be justified on wheel arches, cab floors and exceptionally thin panels, particularly where road noise is a priority. It is a trade-off between cost, added weight, installation time and benefit. A campervan can carry a substantial amount of equipment once furniture, water, batteries and appliances are fitted, so use material deliberately rather than treating weight as irrelevant.

Coverage figures are a guide, not a rule. A panel with multiple stiffening ribs may need less treatment than a large, flat door skin. A van used mainly for summer weekends may call for a different level of acoustic work than one intended for year-round touring and long-distance travel.

Common installation mistakes to avoid

The most common failure is applying sheets over dusty, damp or waxy metal. The material may appear secure at first, then release when temperatures change. Cleaning and rolling are not glamorous parts of the job, but they are what make the installation dependable.

Another mistake is sealing access and drainage points beneath the material. Vans are designed to move water out of doors and body cavities. Preserve that function. Keep factory holes accessible where future servicing, wiring or fixings may be required.

Avoid applying sound-deadening sheet to moving components, sharp edges or areas that will later rub against trim. The foil layer can wear through where there is constant movement. Use appropriate edge protection and foam tape where trim panels are likely to rattle, rather than relying on damping sheet to solve every noise.

Finally, do not rush into fitting ply lining immediately afterwards. Check every panel, press around the edges and make sure the material is fully bonded. This is also the right point to plan cable runs, fit conduit where needed and decide how insulation will sit without being compressed or creating gaps.

Build in the right order

Sound deadening belongs early in a campervan conversion. Once the bare shell has been cleaned, repaired and treated, fit the damping material before insulation, wiring protection and wall linings. Windows and roof vents can be fitted before or after depending on the wider build plan, but their cut lines and fixings should always be considered before the internal layers go on.

For a practical result, treat the vehicle as a system. Quiet panels make the cab and living space more pleasant, but insulation, well-secured furniture, correctly fitted windows and sensible cable management all affect how refined the finished van feels. Next Wave Campers supplies the core conversion materials that support that sequence, from sound treatment and insulation through to the equipment and interiors that complete the build.

Take time to test each treated area before it disappears behind insulation and lining. A clean, firmly rolled installation on the panels that matter most will do more for day-to-day driving comfort than adding material everywhere simply because there is metal left uncovered.
