Campervan Window Fitting for a Dry, Clean Build

A window cut into a van side panel is permanent. Good campervan window fitting makes the living space brighter, improves ventilation and gives passengers a proper view out. Poor fitting can leave you with wind noise, water ingress, damaged paintwork and an interior layout that no longer works. The difference is usually made before the jigsaw comes out: choosing the correct window, confirming its position and preparing the aperture properly.

For most builds, windows should be planned alongside insulation, furniture and electrical work, not added as a finishing touch. A window may look right from the outside but clash with an overhead locker, kitchen pod, bed frame or curtain system inside. Treat it as a structural stage of the conversion and it will make every later job easier.

Choose the right type of campervan window

The right window depends on how the van will be used and where it sits in the layout. Fixed bonded windows give a clean, factory-style finish and are commonly used on side loading doors, rear quarters and rear doors. They let in light without adding moving parts, but they do not help with ventilation.

Sliding or top-hinged opening windows are more useful where airflow matters. A sliding window beside the kitchen can clear steam and cooking smells. An opening window near the bed can reduce condensation overnight, particularly in a compact van with limited roof ventilation. Opening units cost more and need careful consideration of flyscreens, blinds and external clearance, but they can be worth it for regular off-grid use.

Privacy glass is a practical choice for many campervans. It reduces visibility into the van, cuts glare and gives the exterior a more finished appearance. It is not a substitute for blinds or curtains, especially at night with interior lights on, but it gives a useful first layer of privacy.

Do not select a window by vehicle make alone. Check the exact wheelbase, roof height, door arrangement and panel shape. A window designed for a glazed panel may not suit a blank panel with different pressing lines or internal bracing. Confirm whether the supplied window is intended for bonded fitting, clamp-ring fitting or a specific factory aperture.

Plan the aperture before campervan window fitting

Stand inside the empty van and mark the proposed window position using masking tape. This makes it easier to judge sightlines, furniture clearances and the relationship between the window and body lines. Then check the same position outside. A window that follows an existing panel recess will generally look more natural than one that cuts across swage lines.

Internal structure needs equal attention. Vans often have vertical strengthening ribs, wiring looms and door mechanisms behind seemingly clear panels. Removing or cutting a structural brace without understanding its purpose can weaken the panel and cause problems with trim fitting later. On a sliding door, check the cable runs, lock components and the route of the door when open.

Measure the window aperture template more than once. If the manufacturer supplies a cutting template, use it, but verify its dimensions against the actual glass and frame before marking the vehicle. Templates can be damaged in storage or printed at the wrong scale. Mark the cut line clearly, then step back and inspect it from several angles before drilling any holes.

For a professional-looking installation, consider the interior finish at this point. Wall lining, insulation thickness, window trims and blind systems all take up space around the aperture. Planning them early avoids an exposed raw edge or a trim ring that will not sit flat.

Tools and materials that make the job cleaner

A controlled cut is safer and neater than a fast one. You will normally need a drill and suitable metal bit, a jigsaw with fine metal-cutting blades, masking tape, a deburring tool or file, rust treatment, primer and touch-up paint. Eye protection, gloves and hearing protection are essential.

For bonded glass, use the adhesive system specified for the window. This normally includes a panel wipe or cleaner, an activator or primer where required, and a high-quality automotive polyurethane adhesive. Do not assume that a general-purpose sealant will do the same job. The adhesive bead supports the glass, controls the stand-off from the body panel and forms the weather seal.

A suction handle can make positioning large glazed units safer, particularly on a high roof van or door panel. Have a second person available for the final placement. Once adhesive has been applied, there is limited time to position the window correctly.

Cutting the panel without damaging the van

Apply masking tape along the outside of the marked cut line. It protects the surrounding paint from the jigsaw base and makes the line easier to follow. Drill a starter hole just inside each corner, large enough for the jigsaw blade to enter. Keep the drill under control and take care not to strike internal structure or wiring.

Cut slowly, supporting the panel cut-out as you reach the final section. A loose piece of steel can bend, tear the last part of the cut or scratch the paint as it falls. On larger apertures, tape the centre of the cut-out to the body or have another person support it from inside.

After cutting, remove burrs from both sides of the aperture. Trial-fit the window before applying any treatment or adhesive. The glass should sit evenly, with no contact points that force it to one side. If an edge needs correcting, remove only a small amount at a time.

Bare metal must be protected immediately. Vacuum up metal swarf from the panel, floor and door cavities, then clean the edge, apply rust treatment if needed, prime it and finish it with suitable paint. Allow each product to cure as specified. Skipping this stage can lead to corrosion starting under the bonded edge, where it is difficult to spot and harder to repair.

Bonding and sealing the window

Cleanliness determines whether a bonded window stays watertight. The vehicle panel and glass bonding surface must be free from dust, grease, moisture and old adhesive. Follow the preparation process supplied by the adhesive and window manufacturer, including any primers and drying times.

Apply a continuous, even adhesive bead around the aperture. Do not leave gaps at joins or corners. A V-shaped bead is commonly used because it compresses predictably as the glass is pressed into place. Too little adhesive can leave voids and insufficient support; too much can spread onto visible glass or interior trim.

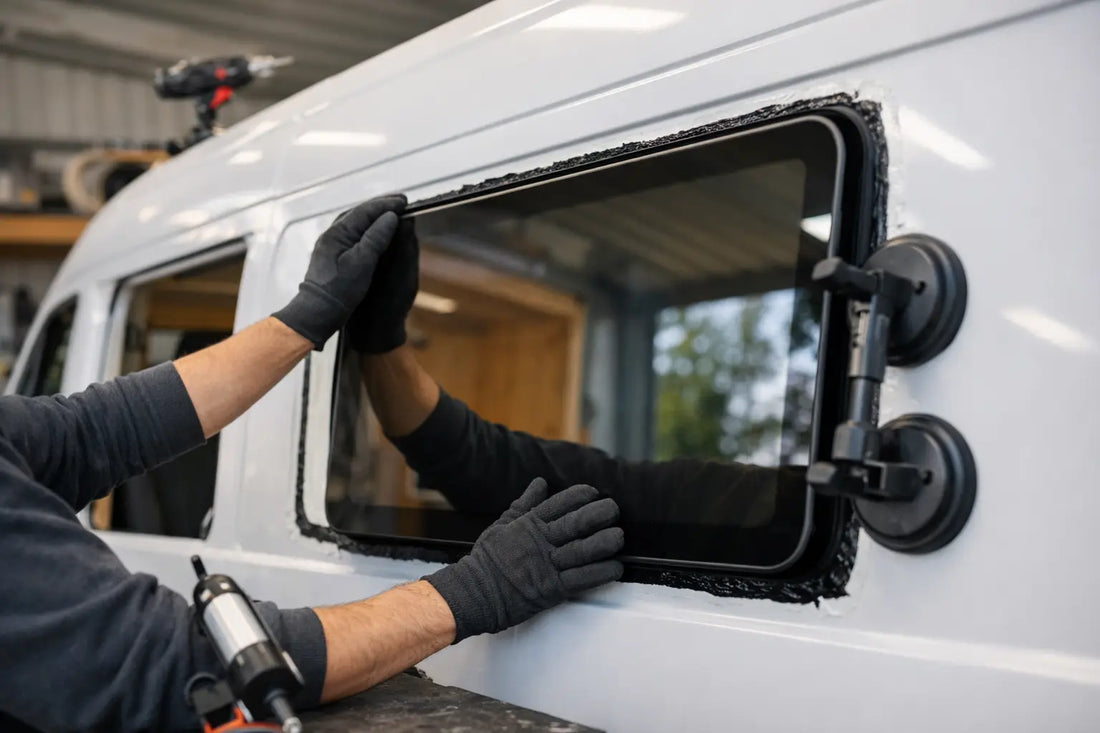

Set the window into position with firm, even pressure. Check the reveal around all sides from outside before the adhesive starts to skin over. Use low-tack tape to hold the unit in place if required, but do not rely on tape to pull a badly positioned window into alignment.

Respect the adhesive cure time. Avoid driving the vehicle, slamming doors or exposing the area to excessive movement until the product has cured as directed. A bonded window can appear secure long before the adhesive has reached its working strength.

Insulation, trims and condensation control

Window fitting changes how the van behaves thermally. Glass is colder than an insulated metal wall, so condensation can collect around it in cool weather. This is normal to a degree, but it needs managing through ventilation, insulation and sensible interior finishing.

Fit insulation carefully around the aperture without obstructing drainage paths, moving window hardware or trim clips. Do not pack moisture-absorbing material into an area where it can become wet and remain damp. Closed-cell insulation and properly fitted vapour control layers are often easier to manage around window reveals than loose fibrous materials.

Finish the inside edge with a purpose-made trim, lined reveal or well-shaped carpet lining. The goal is not only appearance. A clean trim protects the cut edge, prevents snagging and makes the lining easier to remove or repair later. Check that curtains, blinds and window catches still operate freely once the final lining is in place.

Final checks before moving on with the build

Before fitting furniture or wall panels, inspect the window from inside and outside. Check the glass sits evenly, the bead is continuous and no sharp edges remain. Once the adhesive has fully cured, carry out a controlled water test with a hose, starting low and working upwards. Do not use a pressure washer at close range, as this can force water into areas that would not normally see that level of pressure.

If moisture appears inside, identify whether it is entering through the bonded edge, a door seal, an adjacent panel joint or a fitting nearby. Water can travel along panel seams and appear some distance from the actual source. Fix the cause before insulation and furniture conceal the area.

A properly fitted window should feel like part of the van, not an added accessory. Plan it around the insulation and interior from the start, use the correct bonding materials and give every exposed metal edge the protection it needs. That is the sensible route to a quieter, drier and more usable campervan build.
