Campervan Thermal Insulation for UK Builds

A van can look finished and still feel unfinished the first time you spend a cold night inside it. Bare steel ribs radiate cold, road noise carries through large panels, and moisture gathers behind trim where you cannot see it. Campervan thermal insulation is the stage that makes the difference between a van that is merely lined and one that is practical to use across the UK seasons.

It is not a case of filling every void with the thickest material available. A good insulation build deals with heat loss, condensation, sound, available headroom and the way the van will be used. The right approach also leaves access for wiring, avoids blocking drainage routes and provides a solid base for the wall and ceiling finish.

What campervan thermal insulation needs to do

Insulation slows the transfer of heat between the inside and outside of the vehicle. In winter, it helps retain warmth from your heater and body heat. In warmer weather, it reduces the speed at which the interior gains heat from sun-warmed body panels. It will not make a van immune to an August afternoon or a January frost, but it makes the internal temperature far easier to manage.

The other major issue is condensation. Warm, moist air inside the van meets cold metal and turns to water. Cooking, wet clothes, breathing and heating all add moisture to the air. If that water reaches untreated steel or becomes trapped behind lining, it can contribute to corrosion, damp smells and mould.

For that reason, insulation should be considered as part of a complete build system. Ventilation, controlled heating, well-fitted windows and sensible material choices all matter. Insulation is not a replacement for a roof vent or opening window.

Start with the van shell

Do not install materials over dirt, surface rust or failed factory sealant. Remove loose debris, clean the panels and deal with corrosion before covering anything. Once a cavity is insulated and lined, future repairs become slower and more expensive.

Identify factory drain holes, cable runs, mounting points and areas where water may enter. Door cavities, sliding-door panels and lower side sections need particular care. These parts of the van are exposed to rain and vibration, so they should not be packed with absorbent material that can hold water or stop drainage.

This is also the right point to plan electrical work. Run cables for lights, fans, sockets, speakers and future accessories before the final lining goes on. Use suitable conduit or protection where cable passes through metal, and leave enough slack for service access. A tidy insulation job is of limited value if it has to be cut open later to add a roof light wire.

Build the layers in the right order

The most reliable installations use different materials for different jobs rather than expecting one product to do everything.

Treat large panels for noise first

Sound-deadening sheets are normally fitted directly to clean metal on broad, resonant panels such as the roof, side walls, wheel arches and doors. Their purpose is to reduce vibration and panel boom, not to provide the main thermal layer. Full coverage is rarely necessary. Targeting the centre of large panels is usually more efficient and keeps weight and cost under control.

This stage makes a noticeable difference to road noise and rain impact. It also gives a better base for the remaining layers, especially in a van that will cover regular motorway miles.

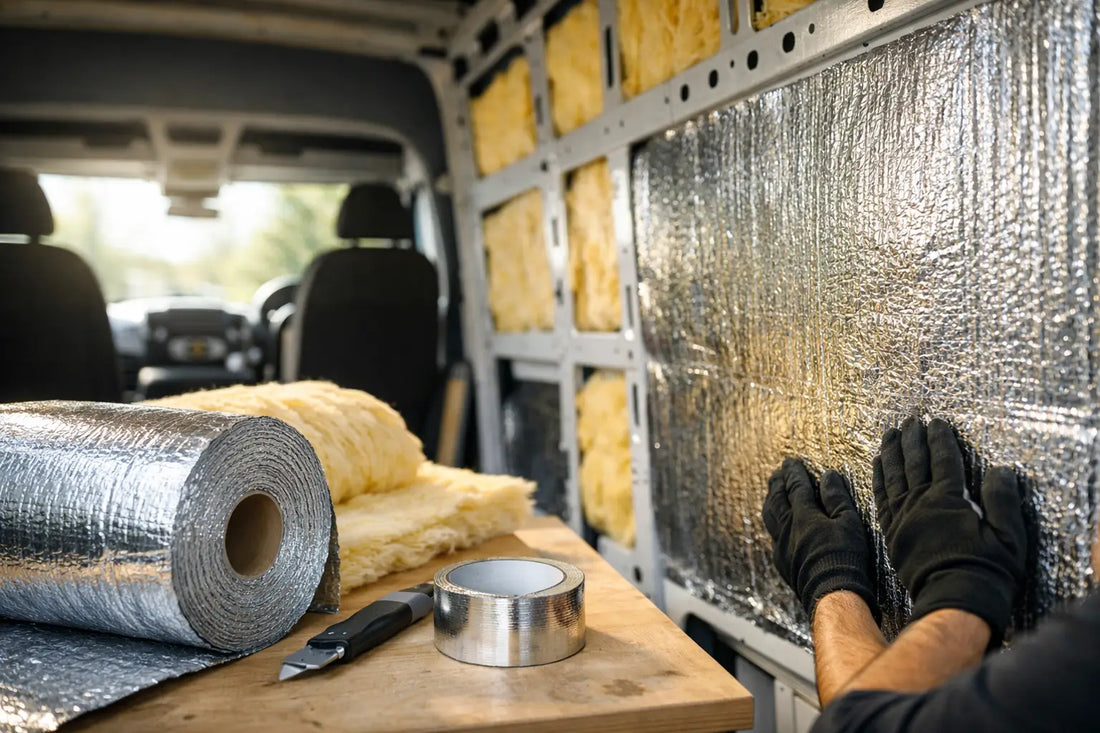

Use a closed-cell layer against exposed metal

A thin closed-cell foam or thermal liner works well directly over accessible metal ribs and panels. It helps reduce cold bridging, where heat passes through exposed metal from the inner lining to the outer shell. It is also resistant to moisture, unlike open fibrous materials.

Pay close attention to roof ribs, vertical pillars, wheel tubs and the sections around windows. These areas are often left bare because they are awkward, yet they can create cold strips that encourage condensation. Do not cover labels, service points or fixings that need to remain accessible.

A thin layer is usually more useful here than forcing thick insulation into every profile. The aim is continuous coverage where practical, without creating loose edges or obstructing trim fitment.

Fill deeper cavities without compressing the material

Deeper wall and roof voids can then be filled with a suitable thermal insulation material. Recycled fibre, polyester insulation and similar automotive-grade products are commonly used because they are easy to cut, stable in a vehicle environment and less affected by incidental moisture than ordinary household loft insulation.

Thickness matters, but so does fit. Compressing insulation tightly into a shallow void reduces its effectiveness because insulation works by holding still air within its structure. Cut pieces accurately, fill the cavity evenly and avoid stuffing material around mechanisms, wiring or drainage channels.

The roof is usually the highest-value area to insulate because warm air rises and the exposed panel receives direct sun. However, roof build-up also costs headroom. In a low-roof van, a thinner but properly installed system may be the sensible trade-off. In a high-roof conversion intended for winter trips, more depth can be justified.

Do not ignore thermal bridges

A van body is a network of steel ribs. Even with well-insulated panels, those ribs can carry cold through to the inside face of the build. This is why simply filling the large cavities is not enough.

Cover accessible ribs with a thin thermal liner before fitting battens and wall boards where possible. Fixing methods also matter. Timber battens and mechanical fixings can create small bridges, but practical construction always involves compromises. Focus on reducing the largest exposed areas rather than chasing a perfect seal that makes the build difficult to service.

Windows are another unavoidable weak point. Quality campervan windows, insulated blinds and external screen covers can have as much effect on overnight comfort as another few millimetres in a wall cavity. For vans used through winter, insulated cab screens are particularly worthwhile because the windscreen is a large area of single glazing.

Manage moisture rather than trapping it

There is no single vapour-barrier answer for every van build. A fully sealed membrane can prevent moist interior air from reaching cold metal, but it must be continuous and carefully detailed around cables, fixings, windows and joins. In a vehicle shell with numerous penetrations, incomplete sealing can create hidden problem areas.

Many builders instead use moisture-resistant insulation, limit exposed metal, retain drainage and rely on controlled ventilation. The best choice depends on the materials used, the construction method and whether the van will see frequent winter occupancy.

Whatever system you choose, allow the van to dry out. Use roof ventilation while cooking, crack a window where appropriate and avoid drying soaked clothes inside without airflow. A diesel or gas heater warms the space, but it does not remove moisture unless the vehicle is ventilated. Wipe visible condensation before it runs into trim and investigate recurring damp patches promptly.

Common insulation mistakes to avoid

The following errors cause most of the problems seen after a van has been lined:

• Using household fibreglass or loft insulation, which can hold moisture, shed fibres and is not designed for vehicle movement.
• Filling door cavities or lower panels without checking drain holes and window mechanisms.
• Applying expanding foam directly into body voids, where it can trap moisture, distort panels and make repairs difficult.
• Covering every panel with sound deadening and expecting it to provide meaningful thermal performance.
• Fitting insulation before planning wiring, windows, heater ducting, furniture fixings and ceiling lights.
• Leaving metal ribs and window surrounds exposed while concentrating only on the large wall cavities.

Calculate materials before ordering

Measure each area separately: roof, side walls, rear doors, sliding door, wheel arches and cab bulkhead if it is being lined. Add the square metre coverage required for each layer, then allow a sensible margin for curved panels, overlaps and offcuts. A simple sketch of the van interior is often enough to avoid under-ordering.

Check the product specification rather than relying on a roll or sheet count. Coverage area, thickness and intended application are the figures that matter. A material suitable for a shallow roof rib may not be the right choice for a deep side-wall void.

It is also worth considering total build weight. Insulation is not usually the heaviest part of a conversion, but unnecessary layers add up alongside ply, furniture, water, batteries and appliances. Use the right amount in the right place rather than adding material for the sake of it.

Finish with a serviceable lining system

Once insulation is in place, fit battens, wall boards and ceiling panels without crushing the layers behind them. Keep photographs of wiring routes and hidden structural points before closing the build. They are useful when fitting furniture, adding accessories or diagnosing a fault later.

For DIY converters, sourcing sound treatment, thermal materials and interior components from the same specialist supplier can make sequencing the build simpler. Next Wave Campers supports that practical order, from shell treatment through to the interior equipment that turns the insulated space into a usable camper.

A well-insulated van will still need ventilation, sensible heating and good habits on wet days. Get those foundations right, though, and every later part of the conversion - from the bed and kitchen pod to the fridge and window blinds - will work in a space that is quieter, drier and far more comfortable to use.
