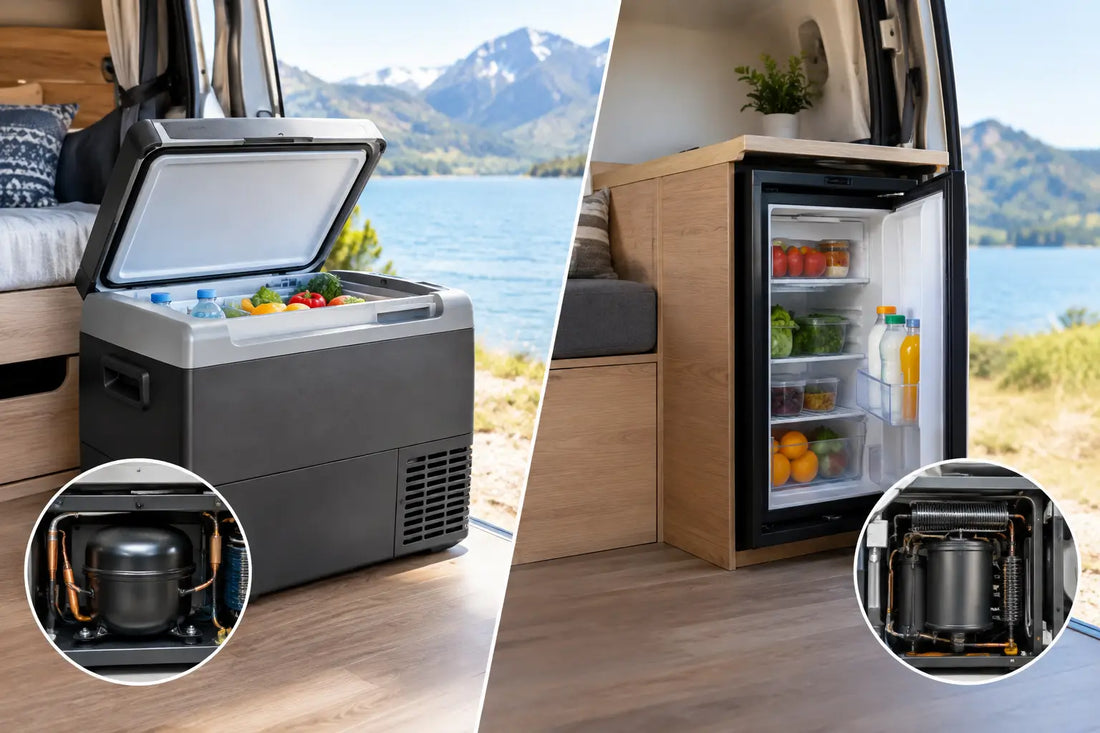

Compressor Versus Absorption Fridges for Campervans

A fridge choice affects far more than where you keep the milk. Compressor versus absorption fridges is a decision that shapes your electrical system, gas installation, ventilation layout and how reliably your food stays cold on a warm pitch. For most modern campervan conversions, a 12V compressor fridge is the practical starting point. Absorption fridges still suit certain builds, but they need the right conditions to earn their place.

How compressor and absorption fridges work

A compressor fridge works much like the fridge in a house. A small electric compressor circulates refrigerant through the cooling system, removing heat from inside the cabinet and releasing it through a condenser at the rear. In a campervan, these fridges normally run on 12V DC, although some models can also operate from mains through a suitable power supply.

An absorption fridge has no compressor. It uses heat to drive a cooling process, usually through an ammonia-based refrigerant system. That heat can come from LPG, 230V mains or, on three-way models, 12V power while the engine is running. The lack of moving mechanical parts makes the system nearly silent, but it also makes cooling performance more dependent on level parking, ambient temperature and correctly designed ventilation.

The difference matters because one system is primarily powered by your leisure battery, while the other is often designed around LPG and mains hook-up.

Compressor versus absorption fridges: the practical differences

The simplest way to compare the two is to consider how you will use the van rather than which specification sheet looks best. A van used for short weekends on serviced sites has different demands from one used for several days away from hook-up.

Cooling performance in warm weather

Compressor fridges generally cool faster and hold temperature more consistently in hot weather. They are usually better at maintaining a safe chilled temperature when the van is parked in direct sun, provided the compressor has adequate airflow around it. They also tend to offer more dependable freezer performance.

Absorption fridges can struggle when outside temperatures rise, particularly if they are fitted with poor rear ventilation or are exposed to strong sun on the fridge side of the vehicle. They work by rejecting heat through the rear of the unit, so any heat trapped behind the cabinet reduces efficiency. In a tightly built campervan, this installation detail is not optional.

If you expect summer trips through southern Europe, carry chilled food for several days, or simply want less temperature management, a compressor fridge is normally the safer choice.

Electrical demand and battery capacity

A compressor fridge cycles on and off rather than drawing maximum current constantly. Actual consumption varies with cabinet size, thermostat setting, ventilation, outside temperature and how often the door is opened. As a working guide, a typical 12V compressor fridge may use somewhere around 25Ah to 60Ah over 24 hours, with higher use in hot conditions.

That draw needs to be included in the electrical design before buying the fridge. A small leisure battery may handle an overnight stop, but it may not provide enough reserve for several days once lighting, water pumps, charging devices and a diesel heater are also in use. Solar can offset daytime consumption, but it should be sized around realistic British weather, not the best-case output shown on a sunny day.

Absorption fridges use very little 12V power when running on gas, making them appealing for off-grid users who do not want to build a larger battery and solar system. However, their 12V setting is normally a high-current heating element intended for use only while driving. It is not a substitute for battery-powered refrigeration when parked.

LPG use and gas installation

An absorption fridge running on LPG can operate for a long period from a properly sized gas bottle. For some users, particularly those spending extended time without electrical hook-up, that remains a genuine advantage.

The trade-off is the gas installation. An LPG fridge requires correct pipework, isolation, drop-out vents, appliance ventilation and safe flue arrangements. It also needs to be installed in line with the appliance manufacturer’s instructions and checked by a competent gas engineer. This is not an area for improvised fittings or assumptions based on a domestic caravan installation.

A compressor fridge removes the need for a gas connection at the fridge itself. That can simplify the kitchen build, especially in vans where LPG is only being used for a hob or where an induction-based electrical setup is planned.

Noise inside the van

Absorption fridges are effectively silent in operation. If your bed is close to the kitchen and you are particularly sensitive to background noise, that is their strongest point. You may hear a faint sound from gas combustion, but there is no compressor cycling overnight.

Modern compressor fridges are generally quiet, but they are not silent. You will hear a low hum or fan noise when the compressor starts, especially in a small panel van at night. The sound level depends on the model, the quality of the cabinet installation and whether pipework or loose trim can vibrate against the furniture.

Good installation helps. Leave the required ventilation gap, secure the fridge properly, and avoid creating hard contact points that transfer vibration into the surrounding units. For most owners, the intermittent noise is a fair exchange for stronger cooling. For very light sleepers, it is worth considering where the fridge will sit in relation to the bed.

Parking level and daily use

Compressor fridges continue working when the van is parked on a slope within normal vehicle limits. This is useful for overnight stops, sloping campsites and days when you do not want to spend time levelling the van.

Absorption fridges need to be reasonably level, particularly when operating for extended periods. If they are run too far off level, cooling becomes less effective and the system can be damaged over time. This limitation is manageable in a caravan on a prepared pitch, but less convenient in a campervan that is frequently parked wherever space allows.

Installation requirements before you order

Fridge selection should come after the basic layout and systems plan, not after the furniture has been cut. Measure the cabinet opening, including the clearance required at the rear, sides and top. Check the door swing and make sure the fridge can be removed for service without dismantling half the kitchen.

For a compressor fridge, calculate the cable run from the leisure battery or fuse board. Voltage drop is a common cause of poor performance and low-voltage cut-outs, particularly where undersized cable has been used over a long run. Fit a correctly rated fuse close to the power source and use cable sized for the appliance and route length, rather than relying on a generic accessory circuit.

Compressor units also need a route for warm air to escape from the condenser area. A fridge boxed tightly into furniture may work on a cool day, then run continuously and draw more power in summer. Ventilation grilles, service gaps and airflow paths should be planned into the cabinetry.

For an absorption unit, rear ventilation is even more critical. The fridge needs external vents positioned in accordance with the manufacturer’s requirements so heat can rise and leave the enclosure. The flue, gas connections and external openings affect both safety and vehicle bodywork, so they must be allowed for before interior panels and units are finalised.

Which fridge suits your campervan build?

Choose a compressor fridge if you want reliable cooling, have or plan a sensible leisure battery system, and expect to use the van away from mains power. It is the usual fit for self-built panel vans, weekend campers and full conversions with solar, DC-DC charging or regular driving. It is also the more straightforward option where space is limited and you want to avoid a dedicated external ventilation and flue arrangement.

Choose an absorption fridge if near-silent running and low battery use on gas are priorities, and you are prepared to accommodate the ventilation and LPG requirements. It can make sense in a traditional caravan-style layout, a build that already has a well-designed gas system, or a van mainly used on level serviced pitches.

There is no benefit in fitting a larger fridge than your electrical system can support, or a gas fridge where the ventilation route has been treated as an afterthought. Start with the way you travel, then size the fridge, batteries, charging equipment and furniture around that use. A correctly planned fridge installation will be one of the least noticeable parts of the van - which is exactly what you want when it is keeping your food cold every day.
