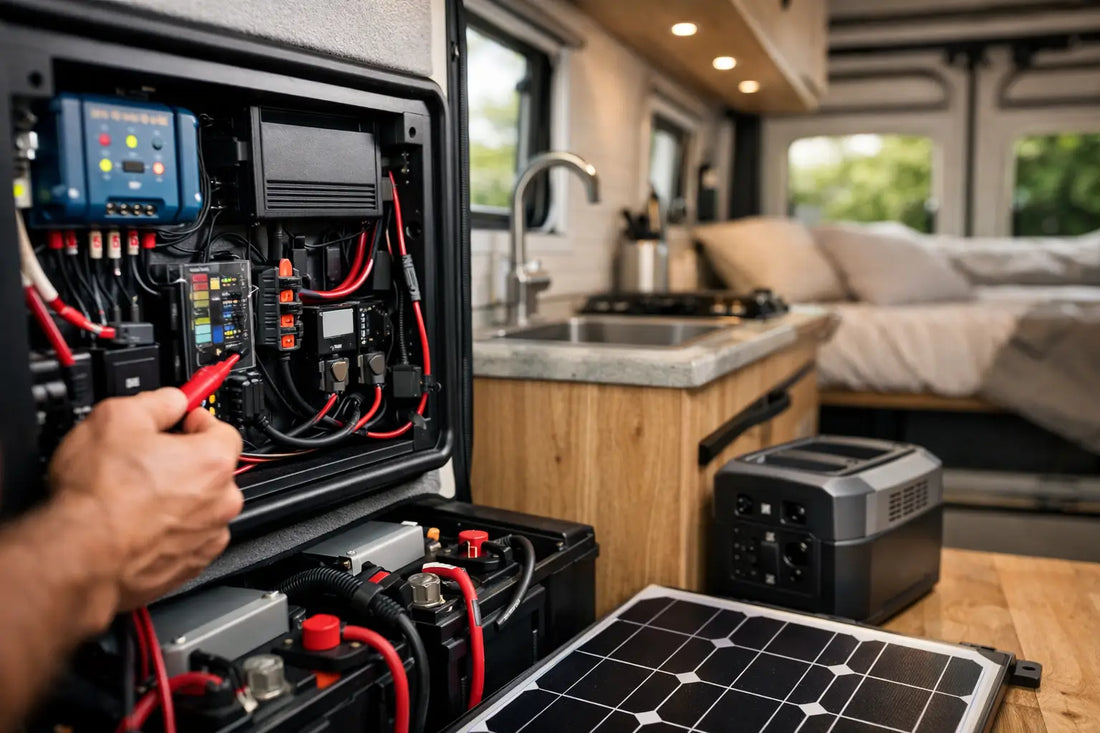

Campervan Electrical Systems Planned Properly

A fridge that cuts out overnight, lights that dim when the water pump starts, or a hot cable behind a cabinet are not minor van-build annoyances. They usually point to a system that was sized, protected or installed without a proper plan. Campervan electrical systems need to be designed around how the van will actually be used, not around the biggest battery or solar panel that happens to fit.

For most builds, the electrical work should be planned before furniture is fixed in place. Cable routes, battery access, appliance locations and ventilation are all far easier to deal with while the interior is still open. It also makes sense to coordinate electrics with insulation, sound deadening, windows and the final furniture layout, rather than trying to force cables through finished panels later.

Start with what the van needs to run

The first question is not whether to choose 12V, lithium or solar. It is what you expect to power, for how long, and how often you can recharge. A weekend van used mainly on campsites has very different requirements from a vehicle used off-grid for several days at a time.

List every electrical item likely to run from the leisure system: compressor fridge, lighting, USB charging, water pump, roof vent, diesel heater controls, laptop charging, television, inverter and any specialist equipment. Record each item’s wattage or current draw and estimate daily use. A 12V compressor fridge may be the largest regular load, but an inverter powering mains appliances can quickly exceed it.

Watts, volts and amps are closely linked. At 12V, a 60W appliance draws roughly 5A. That means a 1,000W mains appliance used through an inverter can demand well over 80A from the battery once conversion losses are considered. A hairdryer, kettle or electric heater may appear convenient, but they can require a larger inverter, heavier cabling and a battery bank that is disproportionate to the rest of the build. Gas cooking, diesel heating and low-power 12V equipment often make more practical sense in a compact campervan.

Battery capacity is normally stated in amp-hours, but usable capacity matters more than the number printed on the case. Lead-acid batteries should not routinely be deeply discharged if a reasonable service life is expected. Lithium batteries generally offer more usable capacity, lower weight and faster charging, but cost more and need a compatible charging setup. Check the battery manufacturer’s limits for charging current, discharge current and low-temperature charging.

Choose the battery system to suit the build

A single leisure battery may be enough for basic lighting, a water pump and occasional charging. Once a compressor fridge, regular off-grid use or an inverter enters the picture, battery capacity and charging performance become more significant.

AGM and other lead-acid leisure batteries remain a sensible option for straightforward, budget-conscious builds. They are familiar, readily available and work well when charging is simple and daily power demand is modest. Their trade-off is weight and lower usable capacity compared with lithium.

Lithium iron phosphate, commonly called LiFePO4, is now a common choice for vans that spend time away from hook-up. It can deliver more of its rated capacity and handles high-current loads well. However, a lithium battery is not simply a drop-in upgrade. The alternator charging method, solar controller, mains charger and battery monitoring should all have appropriate lithium profiles or settings. If the battery does not include low-temperature charge protection, that must be addressed as part of the system design.

Battery location matters as much as battery type. Fit the battery securely, protect it from physical damage and retain access for inspection, isolation and replacement. Avoid placing electrical equipment where it could be exposed to leaks from a sink, water container or window. Heavy batteries also need consideration for vehicle weight distribution and payload.

Plan charging before adding more capacity

A large leisure battery that cannot be recharged properly is dead weight. Most campervans use a combination of alternator charging, solar and mains hook-up charging. The best mix depends on mileage, season and where the van is normally parked.

Alternator charging

For many vehicles, a DC-DC charger is the correct way to charge the leisure battery while driving. It controls the charge profile and can protect the vehicle’s charging system from an excessive leisure-battery demand. This is especially relevant for modern vehicles with smart alternators, where a simple voltage-sensitive relay may not give consistent charging performance.

Size the DC-DC charger around the battery manufacturer’s recommendation, available alternator capacity and cable run. Bigger is not automatically better. A high-output charger can place greater demand on the alternator and requires correctly sized cable and fusing at both ends of the run.

Solar charging

Solar is useful for maintaining a battery during storage and extending time off-grid in brighter months. It is less predictable during a British winter, when short days, low sun angles and overcast weather sharply reduce output. Treat solar as a helpful charging source, not a guarantee that power use no longer needs managing.

A solar panel needs a suitable controller, normally MPPT for better performance across changing conditions. Position the controller close to the battery where practical, while keeping cable routes protected and tidy. Roof penetrations must be sealed properly, and exposed external cabling should be secured against vibration and weather.

Mains hook-up charging

A mains charger gives a reliable way to recharge on a campsite or at home. It should be matched to the battery chemistry and protected by a correctly specified mains installation. A dedicated consumer unit, RCD protection and appropriately rated circuit breakers are not optional extras on a 230V system.

Mains work carries a different level of risk to 12V work. If you are not competent to design, test and certify the installation where required, use a qualified person. A neat-looking socket and cable route do not prove a safe mains system.

Protect every circuit and size cable correctly

Fuses protect cables, not appliances. Their job is to disconnect a circuit before a fault current overheats the cable and creates a fire risk. Every positive feed leaving the leisure battery should be protected as close to the battery as practical, including feeds to a fuse box, inverter, DC-DC charger and solar controller where the manufacturer’s instructions require it.

Cable size must account for both current and cable length. Long 12V runs can suffer voltage drop even when the cable is technically capable of carrying the current. A fridge or heater may behave poorly if voltage at the appliance falls too low during operation. The cure is usually larger cable, shorter runs or both - not simply a bigger fuse.

Use proper crimp terminals, suitable cable, strain relief and secure fixings. Avoid household twin-and-earth cable on 12V circuits, unsupported cables passing through sharp metal, and hidden joints behind fixed furniture. Where cables pass through metalwork, fit grommets or protective conduit. Label circuits at the fuse board and label isolators so a fault can be dealt with quickly.

A practical 12V distribution board separates loads into individual fused circuits. In a typical build, that may include lighting, fridge, water pump, heater, USB sockets and roof vent. Separating circuits makes fault-finding much easier and avoids losing every service because of one failed accessory.

Do not treat the inverter as a shortcut

An inverter is useful when there is a genuine need for 230V away from hook-up, such as charging tools or running a laptop power supply that has no suitable DC option. It is not an efficient answer to every appliance. Inverters draw power even at idle, and high-demand appliances require substantial battery capacity, heavy cables, suitable fuse protection and often a pure sine wave output.

Before fitting one, check whether the appliance can be powered directly from 12V or charged while driving or on hook-up. This usually produces a simpler, more efficient system. If an inverter is required, mount it where it has adequate ventilation and keep its high-current battery cables short, correctly rated and protected.

Build for inspection and future changes

Electrical installations are easier to live with when they can be inspected. Leave access to fuses, isolation switches, chargers and battery terminals. Do not bury critical connections beneath a fixed bed base or behind a sealed kitchen unit. A removable panel can save hours when a fuse blows or a charger needs checking.

A battery monitor is also worth fitting on systems used off-grid. Voltage alone is a poor guide to battery state, particularly under load or while charging. A proper monitor helps track energy used, charging input and remaining capacity, which is far more useful when deciding whether the fridge can run for another night.

Once the system is installed, test it methodically before the interior is finished. Check polarity, fuse ratings, cable security, charger operation and voltage at appliances under load. Test the mains system separately and do not assume low-voltage experience transfers to 230V work.

The best campervan electrical system is rarely the most complicated one. It is the one with enough usable power, sensible charging, protected cable runs and accessible components for the way the van is actually used. Plan it early, leave room to service it, and let the electrical design support the interior rather than dictate last-minute compromises.
