Campervan Gas Safety Guide for Safer Builds
Share
A gas system is one of the few parts of a campervan build where a small shortcut can have serious consequences. This campervan gas safety guide covers the practical decisions that should be made before cupboards, bed boards and kitchen panels make the pipework difficult to inspect or alter.
LPG is an efficient choice for cooking, hot water and space heating, but it needs a properly designed installation. Gas is heavier than air, so a leak can settle at floor level and collect in enclosed areas. The aim is not simply to make the system work on day one. It is to create a system that is secure, ventilated, testable and easy to isolate when the van is parked or in transit.
Plan the gas system before building furniture
Start with the appliance list. A simple two-burner hob has different gas demand, ventilation needs and installation clearances from a combined hob and grill, blown-air heater or water heater. Confirm the appliance type, gas consumption, working pressure and manufacturer installation instructions before choosing a regulator or sizing pipework.
The layout matters just as much as the parts selected. Keep the cylinder locker, regulator, pipe runs, isolation valves and appliances accessible. A pipe hidden permanently behind fitted furniture may look tidy, but it makes inspections, leak tracing and future repairs far harder.
Leave a sensible route for pipework before fitting insulation, wall lining and cabinetry. Avoid placing joints where they will be buried behind panels. A practical build allows a competent person to see key connections, operate the emergency shut-off and test the complete installation without dismantling half the interior.
For UK leisure vehicle installations, the system should be designed and installed in line with current applicable requirements, including the principles set out in BS EN 1949 and each appliance manufacturer's instructions. Exact requirements can vary with the vehicle, appliance and intended use, so this is not an area for guesswork.
Choose the right cylinder and locker arrangement
Gas cylinders must be stored upright in a dedicated, gas-tight locker that is sealed from the living space. The locker needs a low-level drop-out vent leading directly outside. If gas escapes, it needs a clear route out of the vehicle rather than into the kitchen unit, garage area or cab.
The cylinder must be restrained so it cannot shift under braking or cornering. Use suitable brackets or straps fixed to a solid structure, and make sure the cylinder valve and regulator connection remain accessible. A loose bottle can damage fittings even if it does not fall over.
Do not use an ordinary cupboard as a gas locker. Gaps around pipe penetrations, unsealed floor edges and openings into the van are all potential routes for leaked gas. The locker should be purpose-built or carefully constructed to remain sealed from the habitation area, apart from its dedicated floor-level vent.
Refillable systems, underslung tanks and portable cylinders each have different benefits. An underslung tank saves interior space, while a portable bottle is simpler to remove and exchange. Either option still requires secure mounting, correct filling arrangements where relevant, appropriate protection from road debris and a properly specified regulator.

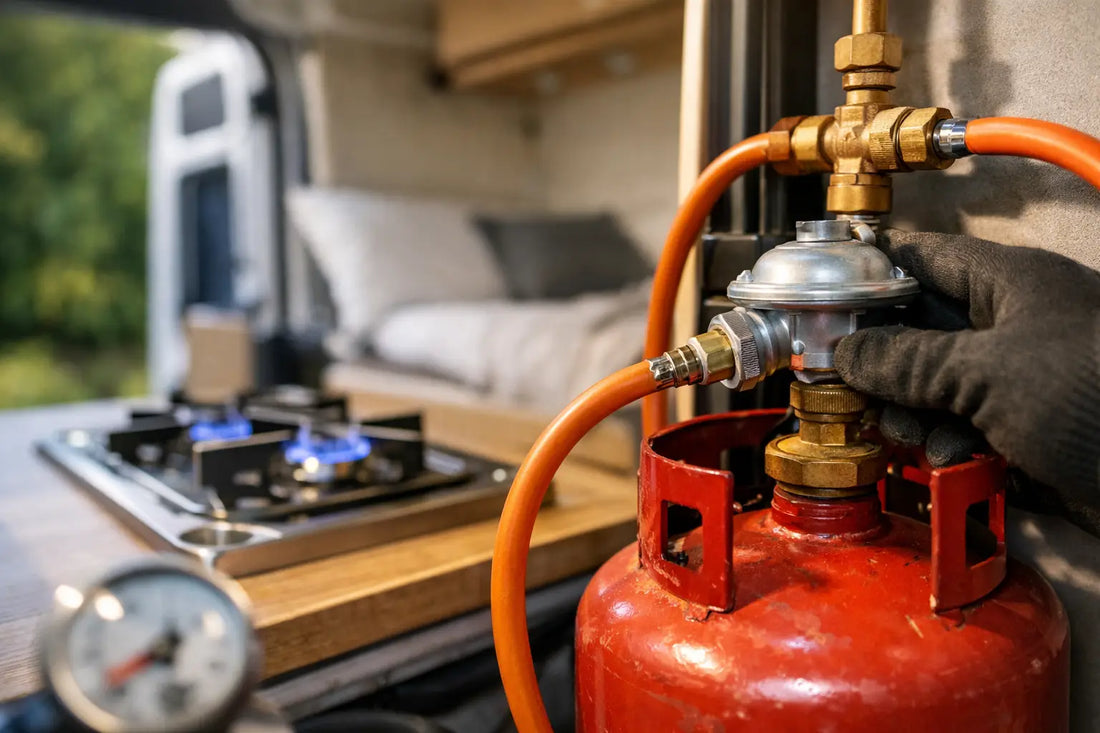

Campervan gas safety guide: regulators, pipework and valves
Every component must suit LPG use and the appliance system it serves. The regulator controls cylinder pressure down to the working pressure required by the appliances. Using a regulator that is not matched to the appliance specification can lead to poor performance, flame instability or unsafe operation.
Keep the regulator protected from impact and excessive water exposure, but do not enclose it in a way that prevents inspection. Hoses should be LPG-rated, kept as short as practical and protected from rubbing, sharp edges and heat. Check their date markings and replacement recommendations. A hose that looks acceptable may still be beyond its recommended service life.
For fixed pipework, use materials and fittings suited to a vehicle environment. Copper pipe is widely used because it is durable, but it must be clipped at suitable intervals and routed to avoid vibration fatigue. Pipework should not be used as a handle, a cable support or a substitute for structural fixing.
Fit accessible isolation valves for each appliance. This means you can turn off the hob without taking the entire system out of service, which is useful when fault-finding or replacing an appliance. Label valves clearly, particularly where a cooker, heater and water heater share one system.
Where pipework passes through metalwork or furniture, use grommets or protective sleeves. Movement is normal in a van. A pipe that repeatedly rubs against a cut metal edge can eventually fail, even if the initial installation felt secure.
Ventilation is part of the installation
A sealed-up campervan may be quieter and warmer, but gas appliances still need the ventilation specified by their manufacturer. Do not block fixed vents to reduce draughts or heat loss. Insulation, sound deadening and airtight finishing all improve comfort, but they cannot replace combustion air or safety ventilation.
Open-flued appliances take combustion air from inside the van and discharge products outside. Their ventilation requirements must be followed precisely. Room-sealed appliances are generally a better fit for many compact campervan installations because combustion air and exhaust are kept separate from the living area, but they still need correct external terminal positioning and clearances.
The exhaust terminal is not a minor detail. It must be located away from opening windows, doors, vents and areas where fumes could be drawn back into the van. Do not alter flue lengths, bends or terminal locations without confirming that the appliance manufacturer permits it.
A carbon monoxide alarm is essential, but it is an alarm, not a fix for poor ventilation or a badly fitted appliance. Fit an alarm approved for use in recreational vehicles, position it in accordance with its instructions and test it regularly. A separate LPG detector mounted low down can provide an additional warning of a gas leak, particularly near the kitchen or cylinder locker area.
Test the system before the final fit-out
Pressure testing should take place before furniture fully closes in the gas system. This is the stage where poor joints, damaged pipework and inaccessible valves are much easier to put right. A professional gas test uses the correct equipment and procedure to confirm that the system holds pressure without a leak.
Never test for leaks with a naked flame. If you are carrying out basic checks after changing a cylinder, use an approved leak-detection fluid on accessible joints and watch for bubbles. If there is any smell of gas, hissing sound or unexplained detector alarm, turn off the supply at the cylinder if it is safe to do so, open doors and windows, avoid electrical switches and do not use the system until it has been inspected.
Commissioning is more than checking whether the hob lights. Each appliance should be checked for correct ignition, stable flame, safe shut-down and proper flue operation where applicable. Keep appliance manuals, installation details and records of professional tests with the vehicle paperwork. That makes future servicing and resale simpler.
Use gas appliances with vehicle movement in mind
A campervan kitchen experiences vibration, changing temperatures and frequent packing around the worktop. Before travelling, turn off appliance controls and isolate the gas supply as appropriate for your system and appliance instructions. Secure pans, remove loose items near the hob and make sure ventilation openings have not been covered by bedding, bags or stored equipment.
When cooking, keep combustible materials away from the hob and do not use it as a space heater. A hob is designed for cooking with a pan above it, not for heating the van with the flame exposed. If a burner flame is yellow, unstable or produces soot, stop using it and have the appliance checked.
Be especially cautious with second-hand appliances. A bargain cooker may lack instructions, have worn burners or have been modified for a different gas pressure. The cost saved on purchase can disappear quickly if parts are unavailable or the unit cannot be safely installed.
A practical gas safety check before every trip
Before heading away, take two minutes to check the system rather than assuming last weekend's setup is still sound. Look for damaged hoses, loose cylinder restraints, blocked locker vents, corrosion around fittings and anything stored against a flue terminal or fixed vent.
A useful pre-trip routine is to:
- check the cylinder is upright, secure and connected correctly;
- confirm the locker drop-out vent and all fixed ventilation openings are clear;
- inspect visible hoses and pipework for rubbing, cracks or damage;
- test carbon monoxide and LPG alarms using their test buttons; and
- make sure appliance isolation valves and the main cylinder shut-off are accessible.
A well-built gas installation should not be a hidden feature you hope never to think about. Make it accessible, correctly ventilated and properly tested, and it will support the useful parts of campervan life - hot food, reliable heating and comfortable nights away - without adding unnecessary risk.
