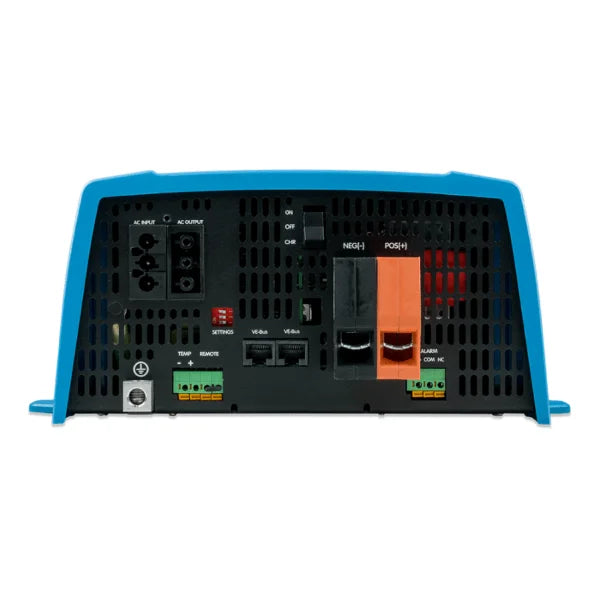

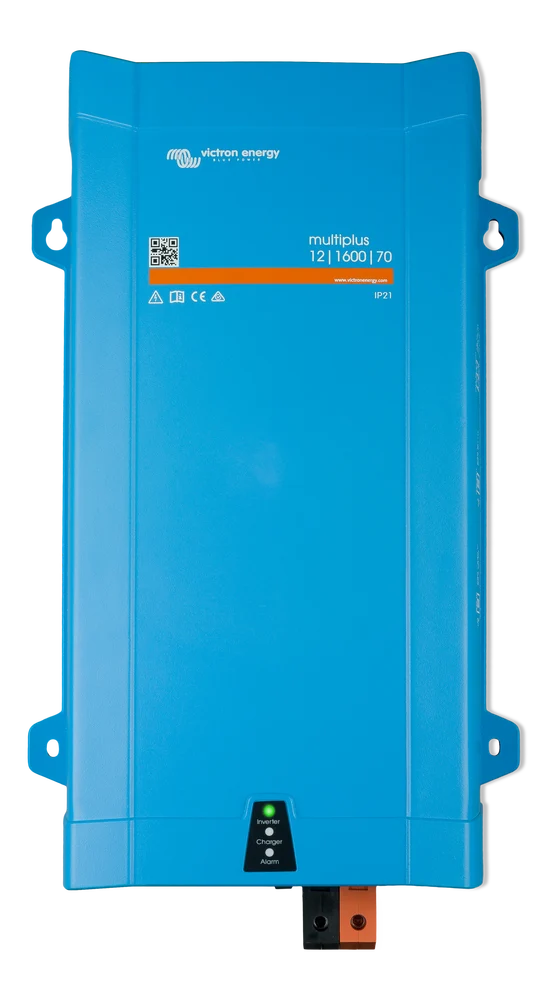

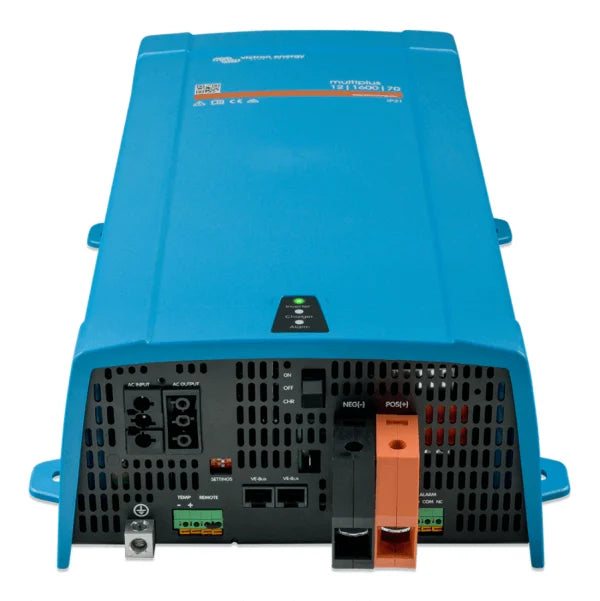

Victron MultiPlus 1600VA 12V Inverter/Charger

The Victron MultiPlus 12/1600/70-16 230V VE.Bus Inverter/Charger combines a true sine wave inverter, adaptive battery charger, and high-speed AC transfer switch in a compact unit, ensuring reliable power for off-grid and mobile applications.

True Sine Wave Output: Provides clean and stable power, ideal for sensitive electronics and appliances.

Adaptive Charging: Extends battery life with a four-stage charging algorithm tailored to your battery type.

Seamless Power Transfer: High-speed AC transfer switch ensures uninterrupted power supply in less than 20 milliseconds.

PowerAssist Technology: Prevents overload of limited AC sources by intelligently managing power distribution.

Remote Monitoring: Easily monitor and control your system via the Victron VRM app and integrate with other Victron devices for expanded capabilities.

Dimensions: 470 x 265 x 120mm

Weight: 10.2kg

True Sine Wave Output: Provides clean and stable power, ideal for sensitive electronics and appliances.Adaptive Charging: Extends battery life with a four-stage charging algorithm tailored to your battery type.Seamless Power Transfer: High-speed AC transfer switch ensures uninterrupted power supply in less than 20 milliseconds.PowerAssist Technology: Prevents overload of limited AC sources by intelligently managing power distribution.Remote Monitoring: Easily monitor and control your system via the Victron VRM app and integrate with other Victron devices for expanded capabilities.Dimensions: 470 x 265 x 120mmWeight: 10.2kg

Performance & Electrical Specifications (Inverter)

• Nominal Battery Voltage: 12 V
• Input Voltage Range: 9.5 – 17 V
• Continuous Output Power at 25°C: 1600 VA
• Continuous Output Power at 25°C: 1300 W
• Continuous Output Power at 40°C: 1100 W
• Continuous Output Power at 65°C: 800 W
• Peak Power: 2800 W
• Maximum Efficiency: 93%
• Zero-load Power: 10 W
• Zero-load Power in Search Mode: 3 W
• Output Voltage: 230 VAC ± 2% (Adjustable to 240V)
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

• AC Input Voltage Range: 187 – 265 VAC
• AC Input Frequency: 45 – 65 Hz
• Charge Voltage 'Absorption': 14.4 V
• Charge Voltage 'Float': 13.8 V
• Storage Mode: 13.2 V
• Charge Current House Battery: 70 A
• Charge Current Starter Battery: 1 A (12V and 24V models only)
• Battery Temperature Sensor: Yes

Key Features & System Integration

• PowerControl & PowerAssist: Yes
• Transfer Switch: 16 A
• Parallel and Three-Phase Operation: Up to 6 units can operate in parallel. Three units can be configured for three-phase output.
• Programmable Relay: Features a relay that can be set for general alarms, DC under-voltage, or generator start/stop functions.
• VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
• Remote On-Off: Yes (On/off/charger only)
• DIP Switches: Yes (For setting battery charge voltage and search mode)
• Internal DC Fuse: 200 A

Mechanical Specifications

• Enclosure Material & Colour: Steel/ABS (Blue RAL 5012)
• Protection Category: IP21
• Battery Connection: 50 / 35 mm²
• 230V AC Connection: G-ST18i connector
• Weight: 10.2 kg
• Dimensions (h x w x d): 470 x 265 x 120 mm
• Operating Temperature Range: -40 to +65°C (fan assisted cooling)
• Humidity: Max 95% (non-condensing)

Standards & Protection

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
• Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
• Automotive Directive: ECE R10-5
• Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
