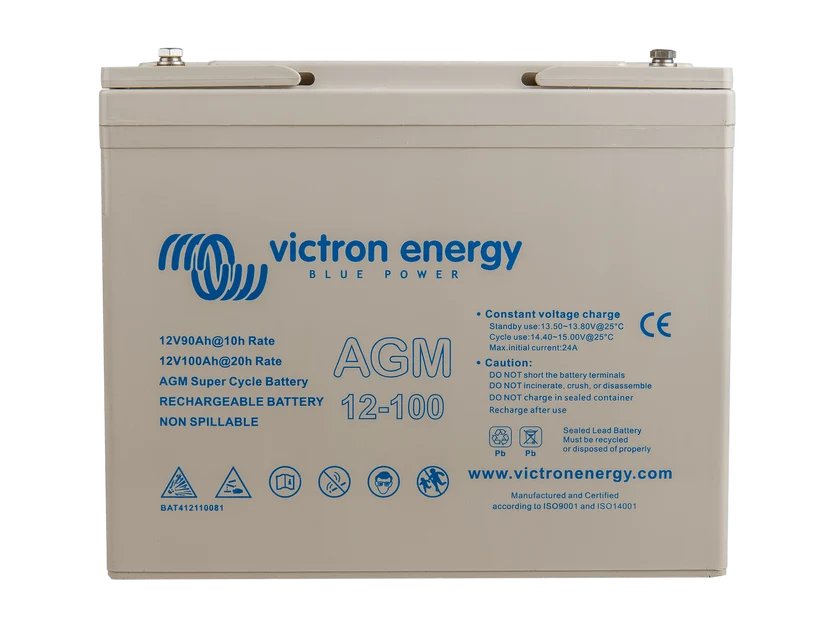

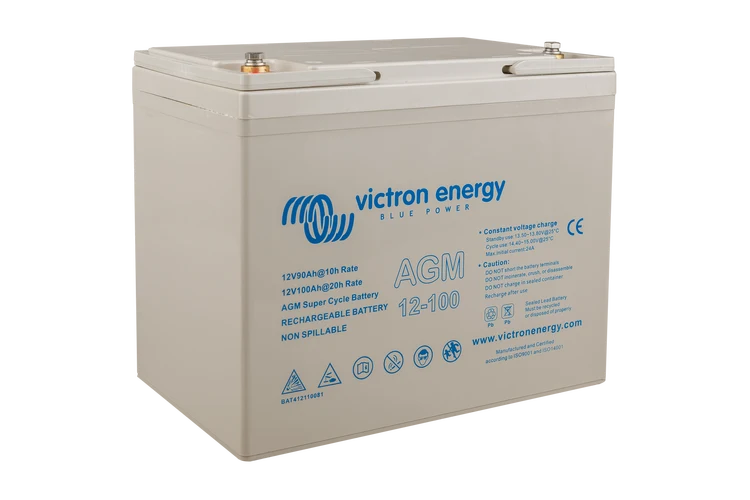

Victron 12V/100Ah AGM Super Cycle Battery (M6) - BAT412110081

Enhanced cycle life when regularly deeply discharged

Low maintenance sealed design for easier installation

Low self-discharge ideal for standby or intermittent use

Reliable performance under higher discharge loads

Compact, robust build suited to mobile and off-grid systemsDimensions: 215 x 260 x 168 mm

Weight: 26kg

The Victron 12V 100Ah AGM Super Cycle Battery is engineered for demanding energy storage applications where reliability, long service life, and consistent performance are essential. Built using Absorbent Glass Mat technology, this battery provides strong deep-cycle capability and excellent resistance to repeated discharge. The Super Cycle design offers improved durability in partial state of charge conditions, making it suitable for systems that experience regular cycling rather than continuous float charging.

Installation is straightforward thanks to the compact footprint and integrated M6 terminals, providing a secure and stable connection. Maintenance requirements are minimal, as AGM batteries are sealed and do not require electrolyte top-ups or venting arrangements. This helps streamline setup in vehicles, marine installations, portable power systems, and industrial backup units where space and time are limited.

Performance remains dependable even under higher load demands. The battery supports rapid charging when paired with compatible chargers and can handle periods of sustained discharge without the rapid deterioration associated with some conventional lead-acid designs. This makes it an excellent fit for inverter systems, powering onboard electronics, small solar banks, and auxiliary power applications.

Cycle Life Performance

• 100% DoD: ≥ 300 cycles (Discharged to 10.8V with 2 hours rest in discharged condition)
• 60% DoD: ≥ 700 cycles
• 40% DoD: ≥ 1000 cycles

Electrical Specifications

• Nominal Voltage: 12 V
• Capacity Ah C5 (to 10.8V): 82 Ah
• Capacity Ah C10 (to 10.8V): 90 Ah
• Capacity Ah C20 (to 10.8V): 100 Ah
• CCA (Cold Cranking Amps) @ 0°F: 500
• RES CAP (Reserve Capacity) @ 80°F: 170
• Internal Resistance: Lower than standard deep cycle AGM models

Recommended Charge Voltages

• Absorption (Cycle Service - Normal): 14.2 V – 14.6 V
• Absorption (Cycle Service - Fast Recharge): 14.6 V – 14.9 V
• Float (Float/Cycle Service): 13.5 V – 13.8 V
• Storage (Float/Cycle Service): 13.2 V – 13.5 V
• Temperature Compensation: -24 mV/°C (based on -4 mV/Cell; center point 25°C)

Mechanical Specifications

• Dimensions (L x W x H): 260 x 168 x 215 mm
• Weight: 26 kg
• Terminals: M6 insert
• Construction: Non-spillable AGM (Absorbent Glass Mat)

Usage Recommendations

• Deep Discharge Capability: Specifically designed to withstand daily discharge to 10.8V followed by rest periods in a discharged state, a condition that would typically damage most standard batteries.
• Temperature Compensation: Required when the battery temperature is expected to be below 10°C or above 30°C for extended periods.
