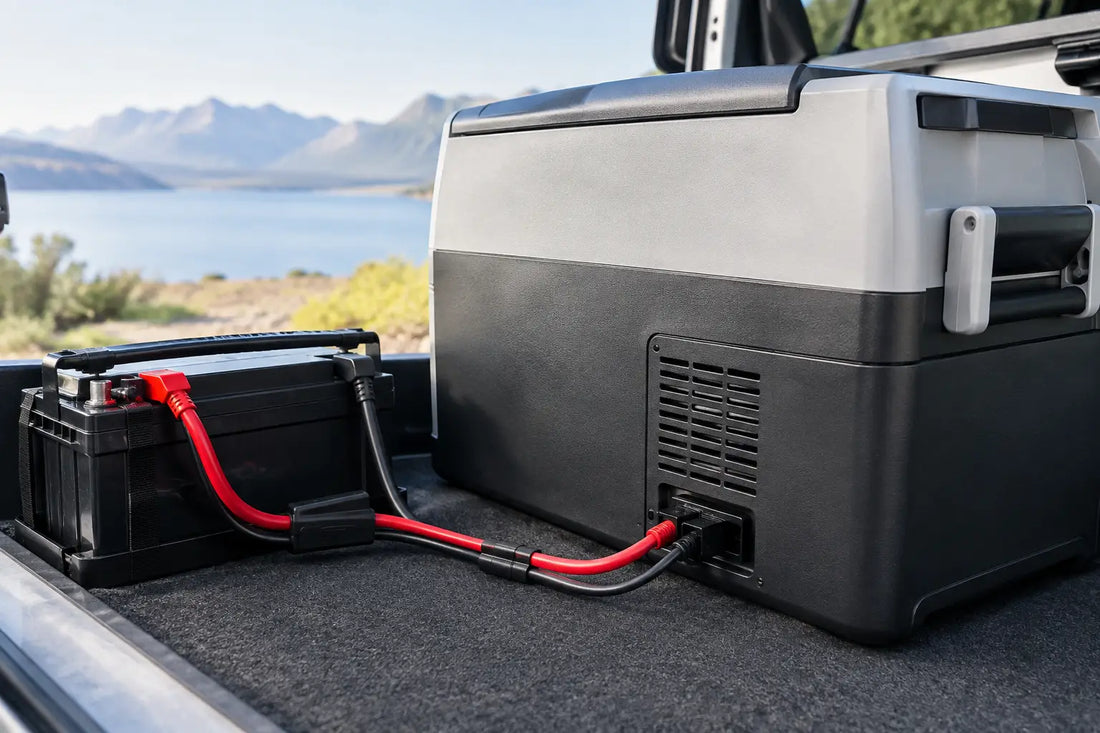

How to Wire a 12V Compressor Fridge Safely

A compressor fridge can be one of the most useful appliances in a campervan, but it is also unforgiving of a poor supply. If you wire a 12v compressor fridge with undersized cable, a weak earth, or no proper fuse protection, it may cycle off on low voltage even when the leisure battery appears charged. Start with the electrical run, not the fridge aperture. A dependable installation is built around cable size, route length, battery protection and safe terminations.

Plan the 12V compressor fridge circuit first

Most 12V compressor fridges draw a modest running current, often around 3A to 6A depending on size, ambient temperature and compressor speed. That figure can lead builders to choose cable on current draw alone. It is the wrong approach. A fridge is sensitive to voltage drop, particularly when the compressor starts. A long cable run with too much resistance can leave the fridge seeing significantly less than the voltage at the battery.

Check the fridge manufacturer's manual before buying cable or fuses. It should state the permitted supply voltage, maximum current draw, recommended fuse rating and any requirements for cable size. Those figures take priority over general guidance. Some models also have terminals for an optional ignition-controlled supply, temperature sensor or mains charger connection. Do not assume every terminal is a standard positive or negative feed.

For a campervan installation, run the fridge from the leisure battery through a dedicated fused circuit. Avoid sharing its feed with water pumps, lights, USB sockets or other kitchen equipment. A separate circuit makes fault-finding easier and prevents another appliance from causing a voltage drop at the fridge.

The total cable length matters. Measure the route from the positive distribution point to the fridge and back from the fridge negative to the negative busbar. Do not measure in a straight line across the van. Account for the route through furniture, behind panels and around wheel arches. A run from a battery under the driver's seat to a rear kitchen pod can quickly become several metres each way.

Choose cable for voltage drop, not just amps

For many typical campervan fridge runs, 4mm² or 6mm² thin-wall automotive cable is a sensible starting point, but it is not a universal answer. A short run to a small fridge may suit 4mm². A longer route, a larger compressor fridge, or a build intended for hot-weather use may justify 6mm² or larger. Oversizing the cable slightly is generally cheaper and simpler than tracing intermittent low-voltage cut-outs after the furniture is fitted.

Use flexible, stranded automotive cable rated for vehicle use. Household twin-and-earth cable is not suitable in a moving vehicle: it is less flexible, harder to route safely and not designed for constant vibration. Red cable for positive and black cable for negative keeps the system clear for future work. Label both ends as well, particularly when several circuits enter a fuse board or rear electrical locker.

Run both positive and negative cables back to the leisure electrical system. Using the vehicle body as the negative return can work in some automotive circuits, but it introduces extra joints, possible corrosion points and uncertainty in a conversion. A dedicated negative cable to a properly rated negative busbar gives the fridge a consistent return path and makes the installation easier to inspect.

Keep the cable protected wherever it passes through metalwork or furniture. Fit rubber grommets at holes through steel, use conduit or abrasion-resistant sleeving where needed, and support the run with suitable clips. Do not trap cable behind sharp-edged brackets, screw through it when fitting trim, or leave it loose where it can rub against a sliding drawer.

Keep the supply route separate from heat and water

The fridge supply should not be routed tightly alongside gas pipework, against a heater duct, or beneath a sink connection where a small leak could reach terminals. In a compact kitchen pod, these services often compete for the same space. Plan the route before closing the cabinet backs and fit the electrical cable where it remains protected and, where practical, accessible.

Fit the fuse close to the battery source

Every positive cable leaving the leisure battery or positive busbar needs overcurrent protection. Fit the fuse as close as practical to the supply source, normally within a short length of cable. Its main purpose is to protect the cable if it is damaged or shorted to the vehicle body. A fuse mounted beside the fridge does not protect the long positive cable running through the van.

Use a fuse holder and fuse type rated for the circuit and installed in an accessible position. The fuse rating must suit both the fridge manufacturer's recommendation and the current-carrying capacity of the cable. Do not fit a larger fuse simply because a smaller one blows. Find the cause first. A blown fuse may point to damaged cable, a loose terminal, reversed polarity or an appliance fault.

It is also useful to have a means of isolating the fridge circuit for servicing or winter storage. This may be a dedicated switch, a removable fuse, or an isolation point within the distribution system. The method matters less than clear labelling and safe access. You should be able to isolate the fridge without disconnecting battery terminals or dismantling the kitchen unit.

Make reliable connections at both ends

Most compressor fridges use a screw terminal block, a two-pin plug, or a dedicated DC connector. Use the connector supplied or specified by the fridge manufacturer. If you need to terminate cable with crimps, use correctly sized insulated crimps and a proper ratchet crimping tool. Pliers and loosely crushed terminals create high resistance, heat and intermittent faults.

Strip only enough insulation for the terminal, ensure no stray strands are visible, and secure the cable so its weight cannot pull on the fridge connection. Bootlace ferrules can be useful where fine-stranded cable enters a screw-clamp terminal, provided the terminal manufacturer permits them. Avoid soldered joints in unsupported vehicle wiring. Solder can wick up the conductor and leave a stiff section that may fatigue with vibration.

Before connecting the fridge, check polarity with a multimeter. Confirm that the positive feed is positive at the appliance end and that the negative return has continuity to the negative busbar. Then check voltage at the fridge terminals with the circuit live. A reading close to the leisure battery voltage is a good sign, but test again while the compressor is running. A noticeable voltage drop under load indicates a cable, joint or connection issue worth correcting.

Protect the leisure battery from deep discharge

A compressor fridge is designed for off-grid use, but it will still consume meaningful energy over 24 hours. Consumption changes with cabinet size, thermostat setting, how often the door is opened, ventilation around the condenser and the temperature inside the van. A fridge working in a sun-heated vehicle in July will use more power than the same unit in a cool spring weekend.

Many compressor fridges include low-voltage cut-out protection. This helps prevent excessive battery discharge, but it should not be the only battery-management plan. Set the fridge to the appropriate battery-protection mode for your system, then make sure the leisure battery is properly charged by a suitable mains charger, battery-to-battery charger, solar charging system, or a combination of these.

Battery chemistry also changes the usable capacity. A lead-acid leisure battery should not routinely be taken as low as a lithium battery with a correctly configured battery management system. Match the fridge's low-voltage settings to the battery type and the wider charging system. If the fridge repeatedly cuts out overnight, do not bypass its protection. Check battery condition, charging performance, cable voltage drop and actual daily consumption.

Allow ventilation around the fridge compressor

Correct wiring will not compensate for poor installation ventilation. The compressor and condenser need space to shed heat. Follow the fridge manufacturer's clearances and provide ventilation openings where specified. A fridge boxed tightly into a cabinet may run longer, use more battery power and struggle in warm conditions.

Leave a sensible service route to the rear electrical connection and compressor area. In a made-to-measure interior, that can mean a removable panel rather than a permanently sealed cabinet back. It is a small detail that saves substantial work if a fuse, connector or fridge component ever needs attention.

Once the unit is installed, run it for several hours with the van electrical system in normal use. Check that the cable and terminals remain cool, that the compressor starts reliably, and that voltage at the fridge remains within its specified range. A neat, dedicated circuit with correctly sized cable is not glamorous work, but it is what keeps food cold when the vehicle is parked well away from a campsite hook-up.
