Campervan Electrical Fuse Guide for Safe Builds

A melted cable behind a finished cabinet is not a minor electrical fault. It is the sort of problem that can damage expensive equipment, stop a trip, or start a fire. This campervan electrical fuse guide explains how to select and position fuses around a 12V leisure system, with a clear distinction between low-voltage DC protection and the separate requirements of a 230V hookup installation.

The key point is simple: a fuse protects the cable, not the appliance. Choose it around the cable’s safe current capacity and the circuit design, then check that it will still carry the appliance’s normal load. Getting that order right makes the rest of the system easier to plan.

What a campervan fuse actually does

A fuse is a deliberate weak point in a circuit. If a fault causes current to rise beyond a safe level, the fuse opens before the cable insulation, terminals or connected equipment overheat. It cannot make poor wiring safe, and it does not replace correct cable sizing, secure terminations or battery isolation.

A campervan has several circuits with very different current demands. LED lighting may draw only a few amps, while a compressor fridge, diesel heater, water pump and USB charging circuit each need their own appropriately protected supply. An inverter can draw tens or hundreds of amps from a 12V battery even when the appliance plugged into it appears modest.

Each circuit should therefore have a fuse or circuit breaker that is suitable for DC use, positioned so that as little unfused positive cable as possible remains between the power source and the protection device.

Start with the cable, then select the fuse

The correct fuse rating is not found by reading the appliance label alone. First establish the cable size, its installation route and its current-carrying capacity. Cable run through insulated voids, bundled with other cables or installed in hot areas may need derating. Long cable runs also create voltage drop, which can cause fridges, heaters and pumps to perform poorly even when the fuse is technically correct.

Then identify the circuit’s expected continuous load and any brief start-up current. The fuse must be high enough to carry normal operation without nuisance blowing, but lower than the maximum current the cable can safely handle.

For example, a water pump drawing 7A might be supplied on a cable rated comfortably above 10A and protected with a 10A fuse. Fitting a 20A fuse because it is readily available would leave the cable inadequately protected if it became damaged or shorted. Equally, a 5A fuse would probably blow during normal pump operation.

Do not assume two cables marked with the same conductor size have identical capabilities. Automotive thin-wall cable, standard PVC cable and specialist battery cable can have different temperature ratings and constructions. Use the cable manufacturer’s data and consider the whole installation, not just the short section visible near the fuse box.

Allow for voltage drop on longer runs

Voltage drop matters particularly on 12V systems because there is little voltage to spare. A fridge can be several metres from the leisure battery once the route out and back is counted. If the cable is undersized, voltage at the fridge may fall enough to trigger low-voltage cut-out or poor cooling performance.

Increasing cable size may be the right answer even where the original cable would survive the current. The fuse still needs to protect the installed cable, so revise the circuit calculation whenever a route or cable size changes.

Main battery fuses and distribution fuses

A leisure battery positive terminal needs protection close to the battery. This is the main fuse for the cable feeding the distribution system, charger, inverter or other high-current equipment. Keep the unfused positive run as short as practical, commonly within around 300mm where the physical layout allows, while following the equipment manufacturer’s instructions.

The rating of this fuse depends on the cable leaving the battery and the maximum combined demand of the downstream system. It should not be selected simply to match the battery’s capacity in amp-hours. A 100Ah battery can supply very high fault current, and that fault current is exactly why close battery protection matters.

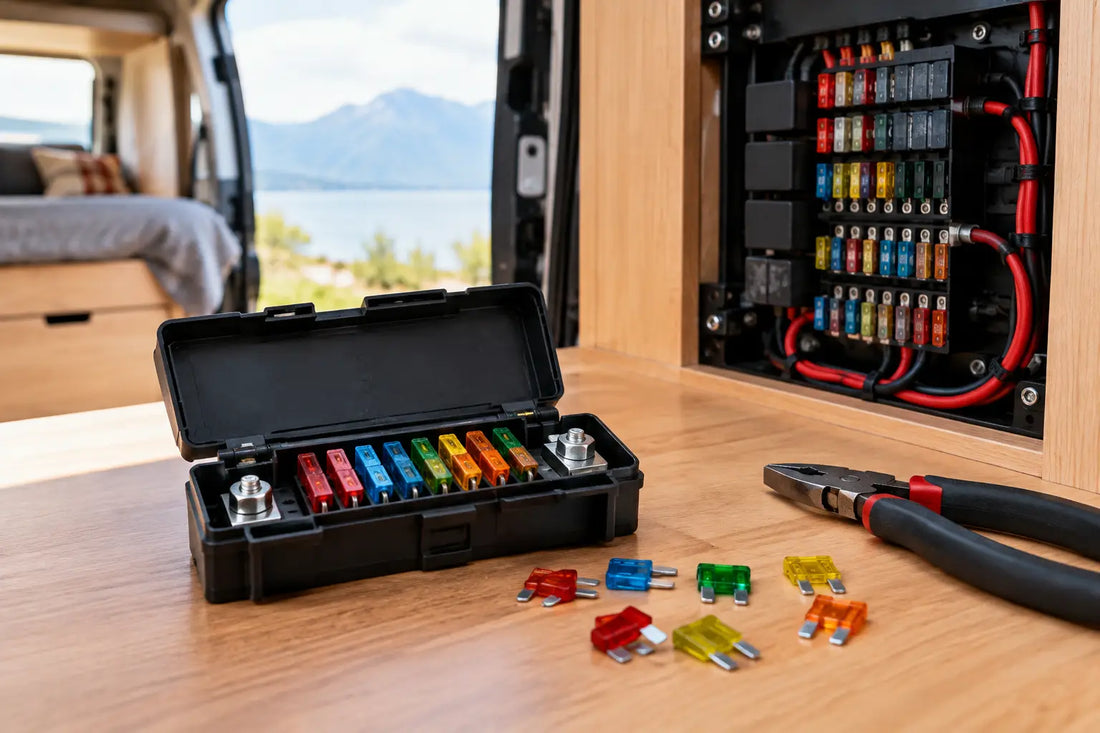

After the main protection, a fused distribution board keeps individual circuits organised. A labelled blade-fuse box is usually the sensible solution for lights, pumps, fans, fridge control circuits, sockets and smaller appliances. It allows one failed circuit to be isolated without losing all power in the van.

Use clear labels that reflect the actual installation: “roof fan”, “water pump”, “diesel heater”, “12V fridge” and “USB sockets” are more useful than vague labels such as “aux 1”. Keep a record of fuse ratings with the vehicle paperwork and update it after alterations.

Choosing the right fuse type

Blade fuses are widely used for lower-current 12V circuits. They are compact, inexpensive and suited to a proper automotive fuse box. Standard, mini and low-profile versions are not interchangeable, so match the fuse to the holder.

For heavier battery cables, use a fuse and holder designed for the current involved. MIDI, MEGA and ANL-style fuses are common choices, but they are not all equivalent. Check the continuous current rating, voltage rating, fixing arrangement and breaking capacity of the complete assembly. At high DC currents, a cheap holder or undersized stud connection can become a hot spot.

Resettable DC circuit breakers can be useful where regular isolation is wanted, but they are not automatically better than fuses. They must have an appropriate DC voltage and interrupt rating. A breaker intended for low-current accessories is not necessarily suitable for an inverter feed or a lithium battery bank.

Avoid adding a fuse in the negative return as a routine measure. In most 12V campervan systems, fuses are fitted in the positive conductors. The negative system should be properly sized, securely terminated and arranged according to the vehicle’s earthing strategy.

High-current circuits need separate attention

Inverters, DC-to-DC chargers and larger battery-to-battery connections deserve individual calculations. An inverter rated at 1,000W can draw roughly 85A from a 12V supply before allowing for conversion losses, and more under load or at lower battery voltage. A 2,000W unit can easily exceed 170A. These circuits need short, substantial cables, correctly crimped lugs, appropriate battery isolation and a fuse sized to the manufacturer’s specification and the cable capacity.

Do not place an inverter’s large fuse at the far end of a long positive cable. A short circuit anywhere along that unfused section would still be fed directly by the battery. Mount the fuse near the battery and protect the cable for its full length.

A split-charge relay or DC-to-DC charger also needs protection at both ends where it connects two battery sources. The starter battery and leisure battery can each feed a fault, so both positive cable ends require proper consideration. Follow the charger maker’s instructions, particularly with smart alternators and lithium leisure batteries.

Solar charging introduces another source of power. Fusing between the solar controller and leisure battery is normally required to protect that cable. Panel-side isolation and fusing depend on the array arrangement, controller specification and number of parallel strings. Remember that solar panels can remain live in daylight even when the leisure battery is disconnected.

Keep 230V protection separate from 12V DC

A 230V hookup system is not simply a larger version of 12V wiring. It requires a suitable consumer unit, RCD protection, correctly rated MCBs, appropriate cable, proper earthing and installation methods suited to a vehicle environment. The inlet, sockets and charger circuits all need to be planned as one system.

Do not use automotive blade fuses as protection for 230V circuits. Equally, do not fit domestic equipment without confirming that it is suitable for the application and correctly installed. Work on mains systems carries a serious shock and fire risk. If you are not fully competent with UK electrical installation practice, have the design and installation completed or checked by a qualified professional.

Keep 230V and 12V cables physically separated where possible, protect both from abrasion through metal panels, and use grommets, conduit or suitable edging at every pass-through. A well-built fuse board cannot compensate for cable insulation rubbed through on a sharp body edge.

A practical check before fitting the interior

Before closing walls, insulation cavities or furniture panels, test every circuit individually. Confirm the fuse value, cable route, polarity, terminal tightness and operation under expected load. Run the fridge, pump, fan and heater rather than testing only with a multimeter. Check for warm terminals and voltage drop on heavier loads.

Take photographs of cable routes before fitting insulation, lining or cabinetry. This saves time later when adding a socket, changing a fridge or repairing a fault. It is also useful when planning a custom interior, where access panels and service routes can be designed around the electrical layout rather than treated as an afterthought.

A neat, labelled fuse installation may not be the most visible part of a campervan conversion, but it is one of the parts you will rely on every day. Build it so that a fault is contained, a fuse can be identified quickly and the next change to the van does not become a guessing game.
