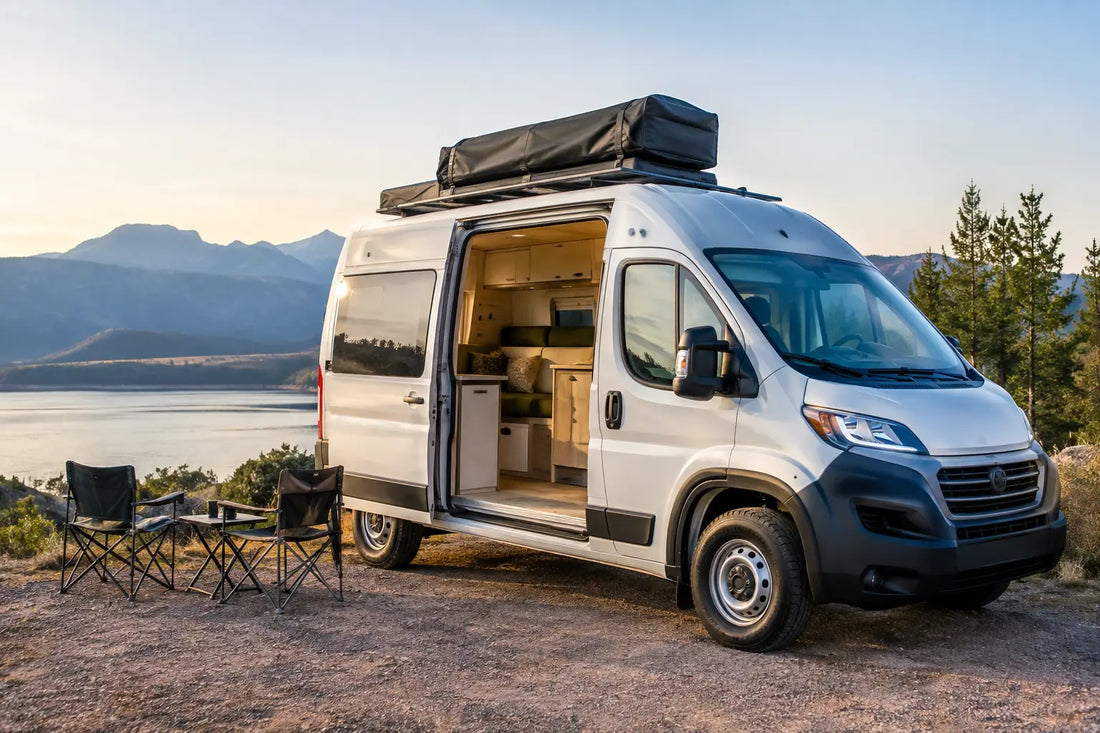

A Campervan Conversion Example That Works

An empty panel van gives you one useful thing: a fixed amount of space. A good campervan conversion example shows how every layer and fitting has to earn its place within it. The result is not defined by expensive upholstery or a long accessories list. It is a van that is quieter on the motorway, warmer on a cold site, practical to cook in, and simple to live with when the weather keeps you inside.

This example follows a medium-wheelbase panel van intended for weekends away, longer UK road trips and occasional off-grid nights. It uses a fixed rear bed, a compact side kitchen and enough storage for two adults. The layout is not right for every build, but the order of work applies to most conversions.

Campervan conversion example: a sensible build order

The project starts before anything is fitted. Measure the load area properly, including wheel boxes, door apertures, roof ribs and any factory trim that will remain. Mark the locations of windows, roof vents, furniture fixings and electrical equipment. This prevents a common problem: completing insulation and wall lining, then cutting back through finished work to run a cable or reinforce a mounting point.

Payload also needs checking early. A full conversion can add more weight than expected once furniture, batteries, water, appliances, passengers and holiday kit are included. A solid plywood unit may be suitable in one van and unnecessarily heavy in another. Build for the payload you actually have, not the one assumed from an empty vehicle brochure.

1. Reduce panel noise before covering the bodywork

Large, unsupported metal panels vibrate. That vibration is part of the drumming noise heard at speed and in heavy rain. Apply sound-deadening material directly to clean, dry metal on broad panels such as the side walls, sliding door, rear doors and roof sections.

Full coverage is not always necessary. The aim is to control resonance, not add needless mass. Concentrate on the centres of larger panels and press the material down firmly around ribs and contours. Avoid blocking drainage channels, access points or fixing holes that may be needed later.

Sound deadening is often confused with insulation. They solve different problems. One reduces panel vibration; the other slows heat transfer. Fitting both in the correct sequence produces a noticeably more comfortable cabin, especially in a bare commercial van.

2. Insulate the floor, walls and roof as a system

Insulation needs to be continuous where practical. If the roof is well insulated but bare metal remains around window frames, door sections and major ribs, those areas still feel cold and can encourage condensation. There will always be some thermal bridging in a van body, but careful coverage reduces it.

Use materials appropriate to the space and the surface. Thin, flexible insulation works around awkward cavities, while more rigid board can suit flat floor areas where height is limited. Do not pack voids so tightly that wiring is pinched or drainage is obstructed. Moisture management matters as much as warmth, particularly in a van used through autumn and winter.

For this example, the floor is treated early with insulation board and a sealed plywood subfloor. That creates a level base for units and gives a reliable surface for final flooring. The final floor finish goes down later, once heavy work has finished, so it is not damaged while fitting furniture.

3. Install windows and ventilation before lining

The van in this build receives a side window beside the bed and a smaller window in the sliding door. These improve daylight and make the sleeping area less enclosed, but they are not only cosmetic. Opening windows and a roof vent give controlled airflow for cooking, sleeping and drying damp clothing.

Cutting apertures is a point where accuracy matters. Measure from fixed body features, protect the paintwork, drill a pilot hole and cut steadily. Treat any exposed metal edges before fitting the window. A poorly prepared aperture can lead to corrosion or leaks that are difficult to trace once the interior is complete.

Ventilation is not optional just because a van has insulation. A well-sealed van retains heat, moisture and cooking fumes more effectively. The practical balance is insulation to control temperature, plus opening windows and roof ventilation to remove humid air when needed.

4. Put cables, pipes and fixing points in place

Before wall and ceiling panels are fitted, run the cables for lights, water pump, fridge, USB sockets and any planned heating controls. Leave sensible service loops and label both ends. A cable marked at installation is much easier to identify after several seasons of use.

This example uses a leisure battery system for lighting, water pumping and refrigeration, with cable routes protected from sharp metal edges. High-current circuits need correctly sized cable, appropriate fusing and secure terminations. If you are not confident designing or testing a 12V system, use a qualified installer. The same applies to any mains installation and gas equipment.

At this point, install timber battens or suitable structural fixing points for wall panels, overhead lockers and furniture. Do not assume a thin van skin will safely carry a loaded cabinet. Furniture must be secured to sound mounting points and designed to stay in place under braking or on uneven roads.

5. Line the shell without losing access

With insulation, wiring and reinforcement complete, the walls and roof can be lined. Carpet lining is popular for its tidy finish and ability to follow curved metalwork. Boarded panels can provide a more furniture-like interior, though they may take more time to template and fit.

The best option depends on the intended use. A hard-wearing work-and-travel van may benefit from durable, easy-clean panels. A leisure-focused conversion may prioritise a softer, quieter interior. Whichever finish is chosen, retain access to key electrical connections, fuses and mechanical fixings. A clean installation should still be maintainable.

The furniture layout: bed, kitchen and storage

In this campervan conversion example, the rear bed sits across the width of the van where the vehicle dimensions allow it. This leaves the central aisle clear and provides a garage space beneath for chairs, levelling ramps, outdoor equipment and electrical components. Taller users may prefer a lengthways bed, but that usually takes more floor area and can reduce kitchen or seating space.

The kitchen runs along one side behind the sliding door. A compact unit contains a sink, hob, drawer storage and a compressor fridge/freezer. Keeping the kitchen near the door helps with ventilation and makes outdoor cooking easier, but it also means careful thought is needed around the door mechanism and usable worktop depth.

Water storage is positioned low and close to the vehicle's centre where possible. This helps weight distribution and makes the van feel more predictable on the road. Fresh-water capacity should match how the van will be used. A small tank saves weight for short breaks, while longer off-grid stays require more capacity and a realistic plan for waste water.

Furniture construction is where a made-to-measure interior can justify its cost. Standard modules are efficient and can suit straightforward layouts, while bespoke units make better use of wheel boxes, sloping panels and unusual bed arrangements. Next Wave Campers can supply individual conversion materials or provide custom interiors where the available space needs a more tailored solution.

Details that make the van usable, not merely finished

A conversion is often judged by its visible surfaces, but daily use exposes the small decisions. Fit positive catches to drawers and cupboard doors. Allow enough clearance for the fridge door and sliding door to operate. Keep frequently used items within reach without unloading half the van.

Lighting should be zoned. Bright task lighting is useful at the kitchen, while lower-level lighting near the bed is better for late arrivals. Include charging points where people actually sit or sleep rather than placing them only beside the electrical cupboard.

Finally, consider how the van behaves on a wet February morning. Can you ventilate it without leaving the door open? Is there space to change out of muddy boots? Can the bed be used without moving bags and bedding? These are the questions that separate a practical layout from a display build.

Start with the shell, plan every hidden service, and only then commit to the visible finish. A campervan built in that order is easier to work on, easier to repair and far more likely to suit the way you travel.
